Solutions · Industry Solutions
Fine chemical plants: corrosion-safe, stable process water
Aggressive reagent environments: materials selection, RO/EDI stability, chemical injection, and instrumentation for batch and multi-product sites.
Use when
Multi-product batches change water demand and quality tiers; incompatible materials and organics spikes cause unplanned shutdowns.
Process options
Segmented loops, RO/EDI or polishers sized per tier, compatible alloys and gaskets, and dosing skids with redundancy.
Assessment output
Fewer batch scrubs from water excursions and faster changeovers between campaigns.
Inputs and conditions for an assessment
Collect feed variability, capacity, target quality, operating hours, discharge or reuse boundaries and installed equipment data. Compare examples on matched conditions and meter boundaries; assess a project using actual water data, equipment documentation and any necessary tests.

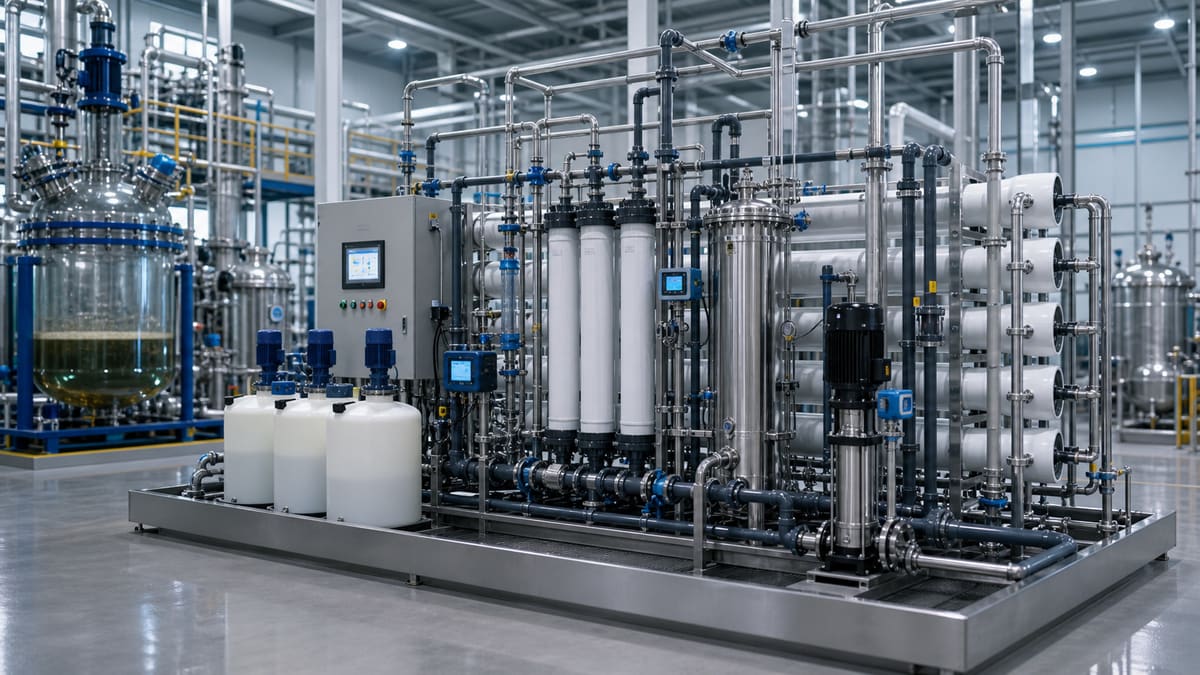

View the process illustration
Industry context & regulatory/compliance drivers
Fine chemical facilities face a unique set of challenges. Production often involves aggressive chemistries, which can lead to corrosive atmospheres impacting instrument housings and seals. The nature of batch processing means water demands fluctuate significantly, requiring systems capable of rapid ramp-up and turndown. Furthermore, accidental organic spills or volatile vent condensates can unpredictably stress water treatment pretreatment systems if not adequately designed for such events.
Water quality targets
Water quality targets in fine chemical plants are highly segmented based on application. Examples include:
- Cooling Water Makeup: Often requires removal of hardness and suspended solids to prevent scaling and biofouling, with conductivity typically <500 µS/cm.
- Rinse Water: Varies widely; some non-critical rinses might tolerate conductivity <100 µS/cm, while critical intermediate product rinses might demand <1 µS/cm or even resistivity >1 MΩ·cm.
- Reactor Feed/Synthesis Water: This is often the most critical, requiring very low conductivity (<0.1 µS/cm, or >10 MΩ·cm resistivity), extremely low TOC (<50 ppb), and absence of specific ions that could interfere with reactions.
- Boiler Feedwater: Typically requires demineralized water with conductivity <5 µS/cm, low hardness, silica, and dissolved oxygen to protect boiler integrity.
this approach adopts a modular approach to achieve these varied targets, ensuring each use point receives the precise water quality it needs, without over-treating where unnecessary.
Process train description
-
Activated Carbon Filtration: Essential for removing chlorine, chloramines, and a significant portion of dissolved organics, which can damage RO membranes or interfere with processes.
- Chemical Dosing:
- Antiscalant: Precisely dosed upstream of the RO to mitigate scaling potential (e.g., calcium carbonate, silica) on the membrane surface, especially at higher recovery rates. this approach systems incorporate redundant chemical dosing pumps with interlocks for critical additions.
- Chemical Dosing:
-
pH Adjustment: To optimize RO performance and prevent scaling.
-
Multi-stage RO systems are often employed to maximize recovery rate while managing LSI / scaling risk in the concentrate stream. The permeate from the first pass RO typically achieves conductivity in the range of 5-20 µS/cm.
- Post-Treatment / Polishing: For applications requiring higher purity.
- Second Pass RO: For even lower conductivity (e.g., <1 µS/cm) and reduced dissolved solids.
- Ultraviolet (UV) Sterilization: Placed at strategic points (e.g., post-RO, before storage, before use point) to reduce microbial load.
-
Continuous Electrodeionization (EDI): EDI combines ion-exchange resins, DC electric fields and selective membranes to polish RO permeate. Ions move into concentrate compartments and leave in the concentrate stream. Water splitting at resin/membrane interfaces supplies H+ and OH- for continuous resin regeneration; this should not be confused with electrode reactions. EDI avoids routine chemical resin regeneration, while cleaning requirements remain module-specific. An example product target is resistivity >10 MΩ·cm, subject to feed-water and module conditions.
-
Mixed-Bed Ion Exchange (MBDI): Used for achieving the highest resistivity (>18 MΩ·cm) and lowest TOC levels, often as a final polish after EDI or for critical points. This step typically uses external chemical regeneration.
Related equipment & product lines
These categories typically support the approach above—open any line to compare brands and models.
- RO MembranesReverse osmosis membrane elements for municipal and industrial desalination.View category →
- Electrodeionization (EDI)EDI modules and systems for ultrapure water production.View category →
- Control ValvesProcess control and softening valves for automated treatment trains.View category →
- ChemicalsAntiscalants, cleaners, and process chemicals for water treatment operations.View category →
For a closer review, use the engineering inquiry form to share feed, capacity, target, and project stage. Submission does not constitute a completed design or performance commitment.
