Scaling and corrosion control for hard and alkaline feeds

Water-analysis-based chemistry and bleed management, tracking scale risk, corrosion evidence, heat transfer, and membrane performance.

Engineering knowledge guide2026LSIantiscalantcorrosionscalingchemistry

Use when

High hardness and alkalinity create both scale and corrosion couples.

Process options

Chemistry and bleed management based on actual water analyses.

Assessment output

Track scale risk, corrosion evidence, heat transfer, and membrane performance.

Inputs and conditions for an assessment

Collect feed variability, capacity, target quality, operating hours, discharge or reuse boundaries and installed equipment data. Compare examples on matched conditions and meter boundaries; assess a project using actual water data, equipment documentation and any necessary tests.

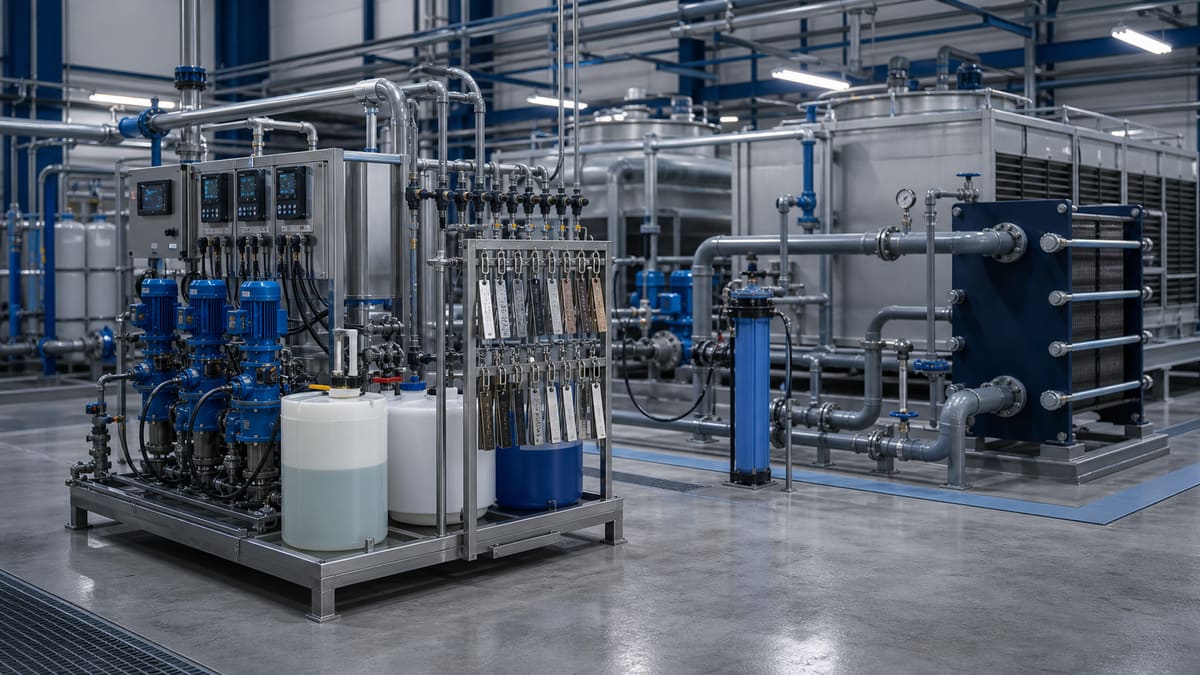

View the process illustration
Water treatment route for scaling and corrosion control in hard and alkaline feeds

1. Process context & when this scenario is the right entry point

Industrial operations frequently encounter water sources characterized by high hardness, alkalinity, and elevated pH, often coupled with varying levels of Total Dissolved Solids (TDS). These challenging feedwaters pose significant risks to critical water treatment assets, particularly membrane systems like Reverse Osmosis (RO) and Nanofiltration (NF). Scaling, a primary concern, results from the precipitation of sparingly soluble salts (e.g., calcium carbonate, calcium sulfate, silica) on membrane surfaces, leading to flux decline, increased differential pressure across membrane stages (ΔP), and ultimately, reduced recovery and system downtime for cleaning or membrane replacement. Simultaneously, improper water chemistry can exacerbate corrosion in metallic piping, pumps, and other equipment within the pretreatment and post-treatment stages. This scenario addresses process design and operational strategies required to manage these feeds effectively, with stable operation and asset life assessed against measured baselines, making it a critical entry point for projects dealing with difficult water sources or those experiencing premature membrane fouling/scaling.

2. Feed characteristics & key risks

Hard and alkaline feedwaters are defined by high concentrations of divalent cations (Ca²⁺, Mg²⁺) and bicarbonates/carbonates. Other critical constituents include sulfates, silica, and iron. Key risks associated with such feeds are:

  • Scaling: CaCO₃ saturation depends on pH, calcium, alkalinity, temperature, and salinity. CaSO₄, BaSO₄/SrSO₄, SiO₂, phosphate, and fluoride require separate species/phase calculations; they do not share one temperature or pH-solubility trend. Silica behavior also depends on metals and concentration polarization. LSI describes carbonate saturation and RSI is an empirical carbonate-related index; neither predicts all scales or directly proves corrosion risk.
  • Corrosion: Assess the actual material, pH, alkalinity, dissolved oxygen, temperature, chloride, flow, and corrosion-control program together. High alkalinity is not intrinsically corrosive. Chloride can promote pitting or stress-corrosion cracking of susceptible stainless steels under relevant conditions. Poor acid-dose control can increase corrosion.
  • Fouling: While distinct from scaling, scaling often exacerbates fouling by providing nucleation sites or reducing membrane performance. Organic fouling, colloidal fouling (measured by SDI₁₅), and biological fouling often co-occur with scaling issues.
  • Osmotic Limits: High TDS in the feed leads to higher osmotic pressure, requiring higher operating pressures for RO, increasing energy consumption, and limiting achievable recovery.
  • Regulatory Drivers: Discharge limits for concentrate streams can dictate the extent of recovery and the required treatment of the reject, particularly for hardness, TDS, or specific ions.

3. Concentrate / reject routing

Define the concentrate outlet and water/solute mass balance explicitly. Rejected solutes and treatment chemicals can become concentrated, but speciation, precipitation, and membrane passage mean that not every feed constituent follows the same concentration factor. Typical routing options include:

  • Reuse as Cooling Tower Make-up: If the cooling tower can tolerate the elevated TDS and specific ions (e.g., silica, chloride) and the concentrate's LSI is manageable within the cooling tower cycle chemistry, it can be a viable reuse option, effectively reducing freshwater demand. However, this often requires careful blowdown management in the cooling tower itself.
  • Re-blending: Mixing the RO concentrate with raw feed or another process stream, provided the blended stream's quality is acceptable for its intended use and does not create new scaling or corrosion risks in the downstream process.
  • Further Concentration (ZLD/MLD): For sites aiming for Zero Liquid Discharge (ZLD) or Minimum Liquid Discharge (MLD), the concentrate is fed to a brine concentrator, evaporator, or crystallizer to recover more water and produce a solid waste. This is common when discharge options are severely limited or water scarcity is extreme.
  • Deep Well Injection: Where permitted by regulation and geological conditions, the concentrate can be injected into deep, non-potable aquifers. This option requires significant geological assessment and regulatory approvals.
  • Off-site Disposal / Haul-off: In cases of low flow rates or when on-site treatment is uneconomical, the concentrate is transported off-site for disposal, which can be costly and logistically challenging.

The chosen disposition directly influences the RO/NF system's recovery rate. A higher recovery means a more concentrated reject stream, intensifying the scaling potential and demanding more aggressive antiscalant dosage or pretreatment. Conversely, a lower recovery yields a less concentrated reject, but with higher reject volume to manage.

4. Reference process train options

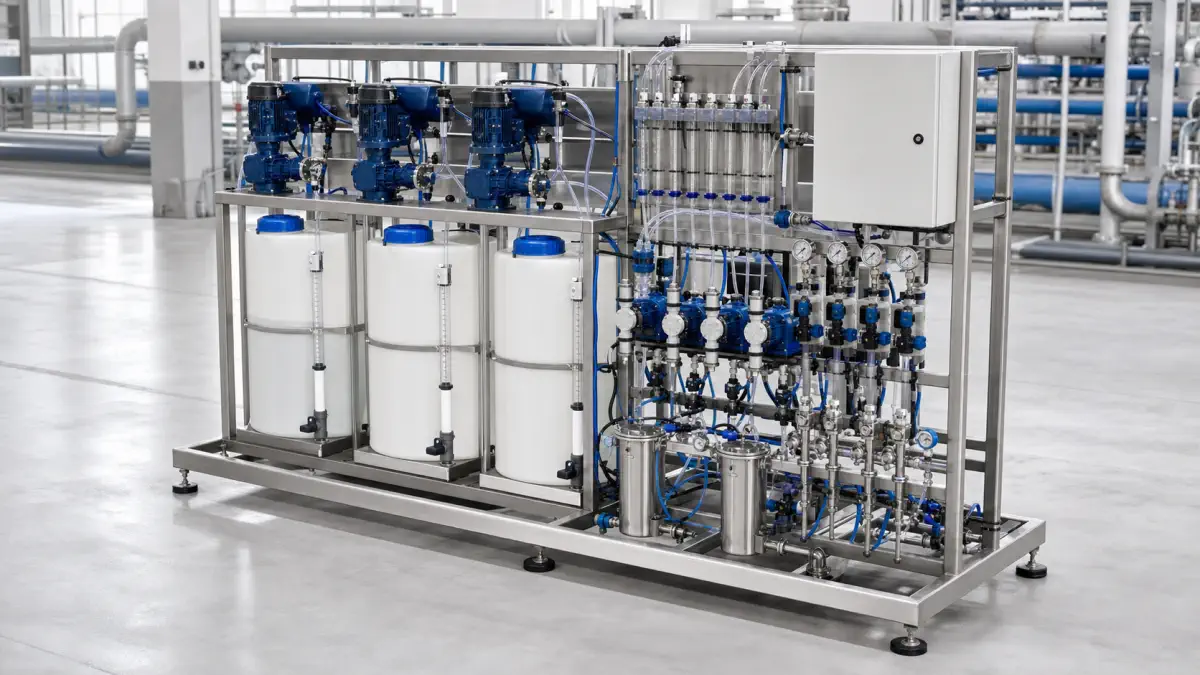

Packaged chemical-dosing skid for scale and corrosion control

Effective management of scaling and corrosion involves a multi-barrier approach:

  • Pretreatment:
    • Clarification & Media Filtration: Removes suspended solids and some larger colloids.
    • Softening: Often critical for very hard feeds. Lime-soda ash softening or ion exchange (IX) softening (sodium cycle) can significantly reduce calcium and magnesium hardness, thereby lowering the LSI and reducing membrane scaling risk. For IX, regenerate waste stream management is critical.
    • Acid Dosing: Lowering the feed pH (e.g., using sulfuric acid) converts bicarbonate to carbonic acid, reducing calcium carbonate scaling potential and LSI. However, this increases CO₂ in the permeate (requiring degasification for boiler feed) and may increase the risk of CaSO₄ scaling if sulfate levels are high. Careful metallurgy selection for acid-resistant materials is essential.
    • Antiscalant Injection: A compatible product can inhibit selected precipitation mechanisms within demonstrated chemistry and dose limits. Select it from the actual concentrate analysis and verify deposit control and cleaning intervals; it does not make scaling ions disappear or guarantee longer runs.
    • Ultrafiltration (UF) / Microfiltration (MF): May reduce particles, selected colloids, and some organics where justified. Verify actual SDI₁₅ and filtrate quality; UF/MF does not inherently remove dissolved hardness or guarantee removal of dissolved organics.
  • Membrane System:
    • Nanofiltration (NF): Selected membranes can reduce divalent hardness before RO, but monovalent passage, osmotic pressure, flux, and pressure depend on the element, feed, and recovery. Compare measured separation and full-system energy rather than assuming lower downstream osmotic pressure or higher flux for every NF.
    • Reverse Osmosis (RO): Main desalination where suitable. A 2-stage layout sends concentrate to another stage for recovery; a 2-pass layout treats permeate again for quality. They are different arrangements, with separate pressure, mass-balance, and energy checks.
  • Post-treatment:
    • pH Adjustment: Permeate pH may need to be adjusted for downstream processes (e.g., boiler feed, cooling water make-up) to prevent corrosion or meet specific requirements.
    • Degasification: For boiler feed, CO₂ stripping is often needed if acid was dosed pre-RO.
    • Continuous Electrodeionization (EDI): Can polish suitably conditioned RO permeate without routine external acid/alkali resin regeneration. Feed-quality, degassing, sanitization, cleaning, and product-quality requirements still apply; EDI does not alone define complete ultra-pure-water qualification.

5. Operating parameters

Precise control and monitoring of key operating parameters are paramount for preventing scaling and corrosion:

  • SDI₁₅ Targets: Values below 5 or 3 are illustrative screening/design values, subject to the selected RO/NF requirements. Conduct timed SDI tests under the specified sampling plan. Low SDI does not exclude biological, dissolved-organic, or scale risks.
  • LSI / Scaling Posture: LSI 2.0 or 2.5-2.8, CaSO₄ saturation 120-150%, and concentrate silica 100-200 ppm are comparison examples, not universal allowable limits with an antiscalant. Define the saturation basis and phase, complete water analysis, temperature, pH, metals, polarization, and recovery. Verify product-specific chemistry and membrane limits using reliable analyses; do not assume continuous measurement of every concentrate ion.
  • Design Flux (LMH): Permeate rate per area is L/(m²·h) or LMH. RO 12 to 25 LMH for surface water and 8 to 15 LMH for difficult industrial wastewater are illustrative preliminary ranges, not universal acceptable loadings. Select flux by actual water quality, membrane limits, temperature, and trials; lower loading is not itself a guarantee of longer membrane life or cleaning intervals.
  • Stage ΔP Monitoring: The differential pressure across each membrane stage, and across the entire membrane array (ΔP), is a primary indicator of membrane fouling or scaling. A sudden or sustained increase in ΔP (e.g., 10-15% over baseline in a short period) signals increased hydraulic resistance due to deposits on the membrane surface, necessitating investigation and potentially a Clean-In-Place (CIP).

6. Digital twin & instrumentation

  • Mass Balance Reconciliation: If a validated model is included, account for pretreatment, permeate, concentrate, drains, and dosing with measurement uncertainty. A model without independent measurements cannot prove sensor accuracy.
  • Scaling/Fouling Assessment: Use reliable analyses for LSI, RSI, and separately defined CaSO₄, BaSO₄, and SiO₂ saturation calculations. Validate model and antiscalant response by tests; remaining time to a critical scaling threshold is not guaranteed.
  • Corrosion Risk Assessment: Combine material-specific corrosion-rate/coupon measurements with pH, temperature, conductivity, and ions. Water-quality indicators are not direct measurements of corrosion potential or metal loss.
  • Energy Assessment: Monitor specific energy consumption (SEC) and compare pressure changes under verified membrane-integrity, recovery, and equipment constraints.
  • Maintenance Support: Compare normalized flux, ΔP, and quality trends against manufacturer criteria, with operator review for CIP and replacement. Optimum dose, timing, and reduced downtime require actual demonstration.

7. Pilot-Scale vs Industrial RO

For pilot or temporary duties, <200 m³/day is a planning example, not a boundary defining a pilot. A pilot-scale RO may test antiscalants, pH, and recovery under representative hydraulic and chemistry conditions. >200 m³/day or multi-MGD production likewise does not establish industrial capabilities. Specify the actual industrial RO requirements for availability, staging, dosing, CIP, and SCADA integration; ZLD downstream treatment and digital-twin functions require separate confirmed scope. Check deployment utilities, controls, approvals, and validation before assigning delivery or performance expectations.

8. Common engineering mistakes & pilot KPIs

Common Engineering Mistakes:

  • Underestimating Feed Variability: Assuming constant feed quality, especially for surface waters or industrial effluents, leads to inadequate pretreatment or antiscalant dosing, causing rapid scaling during upset conditions.
  • Poor Antiscalant Selection/Dosing: Not matching the antiscalant chemistry to the specific scaling species in the concentrate, or incorrect dosage, renders the chemical ineffective. Relying solely on vendor recommendations without independent validation is risky.
  • Neglecting Concentrate Disposition: Failing to adequately plan for the concentrate stream's treatment or disposal, leading to environmental non-compliance, logistical bottlenecks, or unexpected costs.
  • Inadequate Pretreatment: Bypassing critical steps like softening or UF/MF to save capital cost, leading to premature membrane fouling and higher operational costs (cleaning, replacement).
  • Ignoring Metallurgy: Not specifying appropriate corrosion-resistant materials for components exposed to aggressive chemicals (e.g., concentrated acid/alkali, highly corrosive concentrate), leading to equipment failure.
  • Over-optimistic Recovery: Designing for excessively high recovery without fully accounting for concentrate scaling potential, leading to chronic scaling issues.

Pilot KPIs for Hard/Alkaline Feeds:

  • Stable Flux Rate: Track normalized permeate production over time, accounting for pressure, temperature, salinity, and recovery.
  • Flux Decline Rate: Measure normalized decline and investigate fouling/scale alongside controls, instrument error, and other causes.
  • Salt Rejection: Measure TDS/specific-ion rejection using defined methods, alongside normalized flow and salt-passage trends. High rejection alone does not establish membrane integrity or all product-quality requirements.
  • Cleaning Frequency & Effectiveness: How often CIP is required and how fully flux is restored.
  • Antiscalant Consumption: Optimal dosage rates to prevent scaling effectively.
  • Specific Energy Consumption (SEC): kWh per m³ of permeate produced, directly impacting operating costs.
  • Recovery Rate: Achievable permeate volume relative to feed volume.
  • Concentrate Quality & Volume: Confirming actual concentrate chemistry matches predictions for disposal/reuse, and volume aligns with mass balance.

9. FAQ

Q1: How do LSI and RSI differ, and which is more important? A1: LSI compares actual pH with CaCO₃ saturation pH: positive indicates supersaturation, negative undersaturation, and zero equilibrium in the defined model. RSI is an empirical carbonate-related index requiring appropriate application. Neither quantifies general metal-corrosion severity, and negative LSI does not by itself prove corrosive water. Use material-specific corrosion measurements and the actual treatment program separately.

Q2: Can I reduce antiscalant dosage by simply lowering the pH with acid? A2: While lowering pH reduces CaCO₃ scaling potential and thus antiscalant demand for this specific scale, it can increase the risk of other scales (e.g., CaSO₄ if sulfate is present) and significantly increase CO₂ in the permeate. Moreover, excess acid dosing can accelerate corrosion of system components and adds cost. Optimal strategy involves balancing pH adjustment with antiscalant dosage, considering all scaling species and downstream permeate requirements.

Q3: What are typical SDI₁₅ values for reliable RO operation with hard feeds? A3: SDI₁₅ below 3 or 2, or an allowed value up to 5, are illustrative targets rather than universal hard-water criteria. Use the selected element specification and actual pretreatment results. SDI measures particulate plugging tendency, not hardness saturation or every biological/organic fouling risk.

Q4: How does temperature affect scaling and corrosion in these systems? A4: Evaluate each solid phase over the actual temperature range. CaCO₃ often becomes less soluble as temperature rises; CaSO₄ behavior depends on its hydrate/phase and temperature and must not be described as universally increasing in solubility. Amorphous SiO₂ solubility generally increases with temperature, but pH, metals, and kinetics also matter. Corrosion depends on material, oxygen, films, and the water-treatment program; a single temperature rule is insufficient.
