Oil–water separation for produced water and emulsions

Staged oil-water separation with defined oily-waste and reject routes, verifying the water phase against actual reuse or discharge requirements.

Engineering knowledge guide2026produced wateroil waterDAFUFemulsion

Use when

Emulsified oil fools sensors and blinds pretreatment—membrane risk follows.

Process options

Graduated separation with explicit oily waste and reject pathways.

Assessment output

Verify water-phase quality and account for oil-bearing residuals.

Inputs and conditions for an assessment

Collect feed variability, capacity, target quality, operating hours, discharge or reuse boundaries and installed equipment data. Compare examples on matched conditions and meter boundaries; assess a project using actual water data, equipment documentation and any necessary tests.

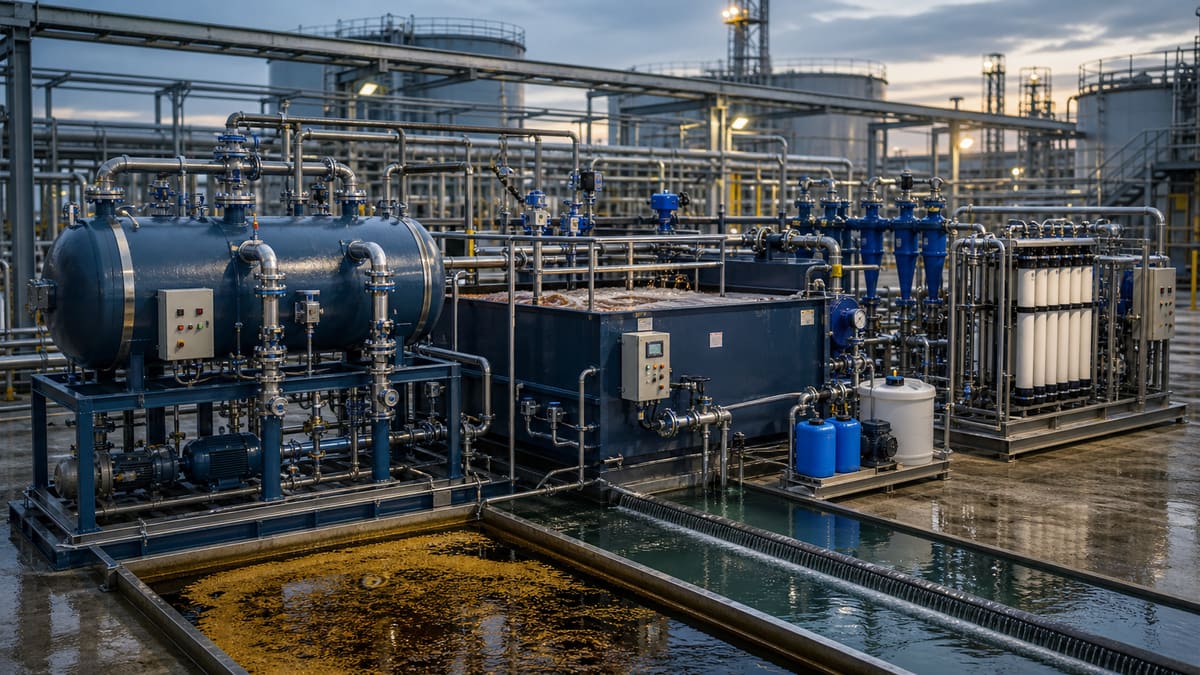

View the process illustration
Oil–water separation for produced water and emulsions water treatment solution illustration

1. Process context & when this scenario is the right entry point

This scenario addresses the critical need for efficient oil and water separation in industrial process streams, particularly in oil and gas production (produced water), refining, petrochemicals, and various manufacturing facilities generating oily wastewater. The primary objective is to recover clean water for discharge, reuse, or further treatment, while concentrating the oil and suspended solids for disposal or recovery. This scenario is the appropriate entry point when the feed stream contains significant quantities of free, dispersed, or emulsified oils alongside suspended solids and dissolved salts, where traditional gravity separation is insufficient to meet discharge or downstream process specifications. Effective separation is paramount for environmental compliance, resource recovery, and protecting sensitive downstream equipment such as heat exchangers, boilers, and membrane systems.

2. Feed characteristics & key risks

Produced water and oily emulsions present a complex matrix of contaminants. Typical feed characteristics include:

  • Oil & Grease (O&G): Ranging from 50 mg/L to several thousand mg/L, often present as stable emulsions that are difficult to break.
  • Total Suspended Solids (TSS): Variable, from <100 mg/L to >1000 mg/L, including silt, clays, corrosion products, and biological solids.
  • Total Dissolved Solids (TDS): Highly variable, from brackish (a few thousand mg/L) to hypersaline (over 100,000 mg/L), introducing osmotic challenges and scaling risks.
  • Organic compounds: Naturally occurring organic matter, production chemicals (e.g., corrosion inhibitors, scale inhibitors, biocides), and dissolved hydrocarbons (e.g., BTEX).
  • Hardness and Alkalinity: Contributes to scale formation.

Key risks during treatment include:

  • Membrane fouling: Irreversible fouling by O&G, colloidal particles, and organic matter is the foremost challenge, leading to flux decline and increased cleaning frequency.
  • Scaling: Evaluate CaCO₃, CaSO₄, BaSO₄, SrSO₄, and silica separately at concentrate conditions. LSI +2.0 is a carbonate example, not a predictor of every scale; high-salinity waters require appropriate activity/speciation calculations.
  • High osmotic pressure: For high TDS feeds, particularly with RO, the osmotic pressure can be significant, requiring very high operating pressures and limiting water recovery.
  • Regulatory compliance: Determine the actual permit and reuse specifications, including analytical methods for O&G, TSS, and dissolved contaminants. O&G <5-10 mg/L is a project example, not a universal discharge limit.

3. Concentrate / reject routing

A comprehensive mass balance approach dictates that all concentrate and reject streams must have a defined disposition.

  • Primary/Secondary Separation Sludges: API/DAF/IGF residues contain oil, TSS, and water. Dewater where appropriate, characterize the originating waste and contaminants, and select authorized recovery, treatment, landfill, or incineration routes. Recycle separated water only with capacity and accumulation checks; discharge requires actual outlet compliance.
  • Media Filter Backwash: Backwash water from multi-media filters contains accumulated TSS and some oil. This stream is often sent to a clarifier for solids settling, with the clarified supernatant recycled to the head of the plant or discharged. The settled sludge is managed similarly to primary sludges.
  • Membrane Reject (UF/NF/RO): UF/MF retentate concentrates retained droplets and particles but normally passes most dissolved salts. NF/RO concentrate composition depends on species rejection and salt passage. Establish separate measured balances for oil, solids, salts, and dissolved organics rather than assuming every contaminant concentrates equally.
    • Deep well injection: A common practice in the oil and gas industry, where the reject is injected into suitable geological formations. This requires specific geological assessments and regulatory permits.
    • Further concentration/ZLD: Thermal concentration may recover more water for a defined ZLD boundary. Check volatile hydrocarbons and entrainment in condensate, residual mother liquor, and salt-cake classification; condensate purity and solid reuse are not automatic.
    • Haul-off: For smaller volumes, the reject may be trucked off-site to a specialized wastewater treatment facility or disposal well.
    • Return to process: In some refinery or petrochemical applications, if the quality is compatible, a portion of the reject may be recycled back to an upstream process like a crude desalter, managing salinity and oil content carefully. This requires stringent monitoring to prevent system upsets.

4. Reference process train options

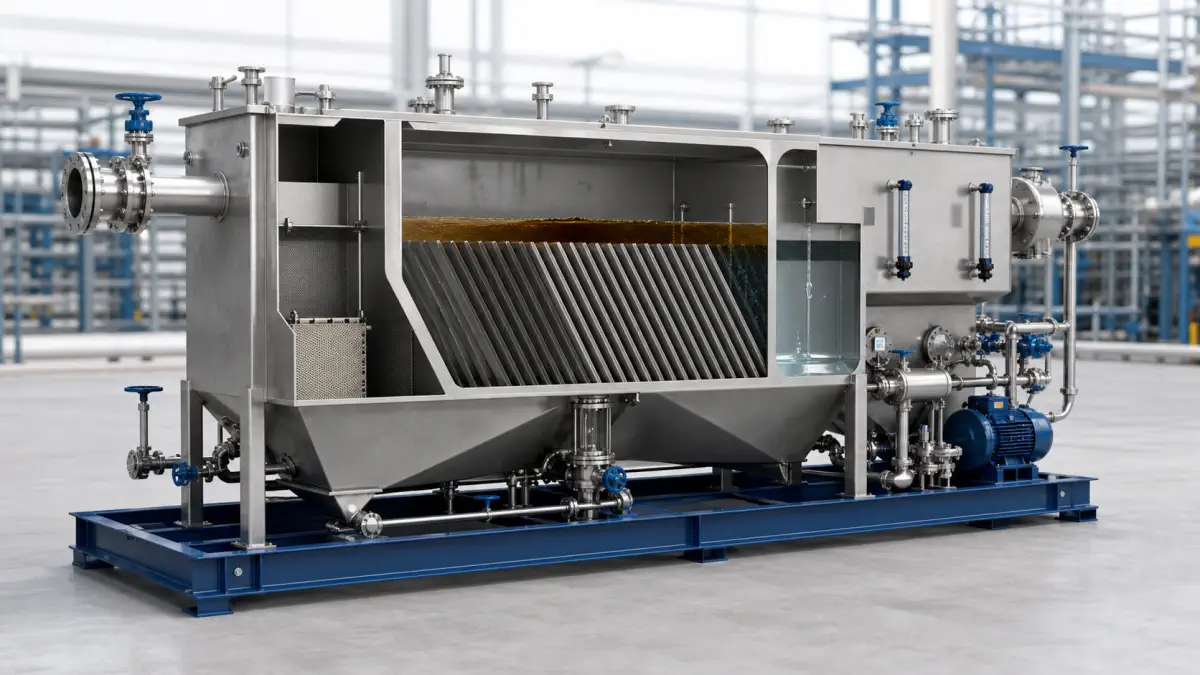

Packaged coalescing-plate oil-water separator for produced-water pretreatment

Effective oil-water separation often requires a multi-stage process train, balancing capital and operating expenditures with performance requirements.

  1. Primary Separation: For gross O&G removal.
    • API Separator / Corrugated Plate Interceptor (CPI): Gravity separation targets free oil by droplet size, density difference, residence time, and hydraulics. O&G > 100 mg/L is an illustrative feed case, not a general selection threshold; stable emulsions and dissolved oil are not reliably removed by gravity alone.
  2. Secondary Separation: Reducing O&G and TSS further.
    • Dissolved Air Flotation (DAF) / Induced Gas Flotation (IGF): Gas bubbles assist fine-droplet and solids separation, often after tested coagulation/flocculation or demulsification. O&G < 5-20 mg/L is an illustrative trial target, not a guaranteed outlet. Select the actual gas and venting arrangement for hydrocarbon/H₂S compatibility and applicable site safety requirements.
    • Coalescing plate separators: Uses oleophilic plates to encourage oil droplet coalescence.
  3. Tertiary Polishing & Membrane Pre-treatment: Critical for protecting downstream membranes.
    • Multi-media filtration: Removes residual suspended solids.
    • Activated Carbon Filtration: Adsorbs dissolved organics and residual oils.
    • Ultrafiltration (UF) / Microfiltration (MF): Can retain particles and emulsified oil if membrane chemistry, droplet size, feed surfactants, and integrity are suitable. SDI₁₅ < 3-5 is a test target, not a guarantee. Physical retention is not the same as chemically breaking an emulsion, and dissolved hydrocarbons/salts may pass.
  4. Advanced Separation (Membrane Filtration):
    • Nanofiltration (NF): Can selectively reject hardness and some organics under validated conditions. Monovalent salt passage and downstream osmotic pressure depend on the selected element and complete balance, not a universal NF characteristic.
    • Reverse Osmosis (RO): May remove dissolved salts with suitable feed and equipment. A 99%+ TDS target requires element-specific testing and is not a guarantee for trace or volatile organics. Verify LSI for carbonate, other species separately, and actual salinity/pressure limits before assigning a reuse duty.
  5. Post-Treatment (if required):
    • Electrodeionization (EDI): Can polish adequately conditioned RO permeate without routine acid/alkali resin regeneration. Feed-quality, CO₂, cleaning, sanitization, and final application requirements still apply; not every boiler duty needs EDI or full ultrapure-water quality.
    • Degasification: For CO2 removal to reduce permeate conductivity and protect downstream ion exchange resins.

5. Operating parameters

Precise control and monitoring of key operating parameters are essential for sustained performance and asset integrity.

  • SDI₁₅ (Silt Density Index): Apply the selected RO feed requirement and timed test method. SDI₁₅ < 3-5 is an illustrative target, not a universal criterion or guaranteed UF/MF outcome. SDI alone does not detect all oil, dissolved-organic, biological, or scale risks.
  • LSI (Langelier Saturation Index): Evaluate CaCO₃ with LSI and use separately defined calculations for CaSO₄, BaSO₄, SrSO₄, and SiO₂. LSI < +2.0 is an illustrative project input, not a universal permitted concentrate condition. Antiscalants inhibit some precipitation within verified chemistry limits; they do not remove ions or lower thermodynamic saturation by dosing alone.
  • Flux (LMH): UF flux of 30-80 LMH and NF/RO 8-20 LMH in L/(m²·h) are preliminary examples. Select actual loading from membrane limits and oily-feed trials. Track normalized flux, accounting for pressure, temperature, salinity, and recovery; stable raw flow alone does not prove membrane health.
  • Differential Pressure (ΔP): Compare normalized ΔP by stage and instrumented element boundary. A rise >10-15% or stage ΔP > 0.7-1.0 bar / 10-15 psi is illustrative, not a universal cleaning or allowable-pressure criterion. Use equipment limits and diagnose the cause; RO cleaning and UF/MF backwash are different procedures. Pre-filter ΔP and filtrate quality guide its specified maintenance.

6. Digital twin & instrumentation

  • Operator Decision Support: If a validated model is included, combine balances and trends to compare dosing, energy, recovery, and maintenance advice. Retain data-quality controls, safeguards, and operator approval; predictions and optimum outcomes are not guaranteed.

7. Pilot-Scale vs Industrial RO

For oil-water separation, select the separation process before deciding on a downstream RO package. pilot-scale RO can test representative oily-feed pretreatment and membrane behavior where desalination is feasible; <100 m³/day is a planning example, not a pilot definition or deployment guarantee. Specify the actual industrial RO hydraulic, availability, dosing, CIP, and SCADA scope. Large capacity does not itself establish ZLD capability, full automation, or optimized energy use.

8. Common engineering mistakes & pilot KPIs

Common Engineering Mistakes:

  • Underestimating emulsion stability: Assuming free oil separation is sufficient, leading to rapid downstream membrane fouling by stable emulsions. Often requires dedicated chemical demulsifiers or robust UF pre-treatment.
  • Insufficient pre-treatment: Validate the actual membrane oil tolerance and feed specification. SDI₁₅ <3-5 and O&G <1-3 mg/L are illustrative test targets, not universal safe RO feed limits.
  • Inadequate concentrate management: Neglecting to fully define the disposition and cost of all reject streams (sludges, membrane reject), leading to unexpected operational bottlenecks and costs.
  • Ignoring dissolved gases: Dissolved H₂S, CO₂, and light hydrocarbons can cause gas lock in membranes or corrosion.
  • Poor chemical selection/dosing: Incorrect anti-scalants or coagulants can exacerbate fouling or scale, or be ineffective.

Pilot Key Performance Indicators (KPIs):

  • Permeate quality: O&G <1-3 mg/L, TSS <1 mg/L, SDI₁₅ <3, and TDS reduction are illustrative test targets. Define the actual outlet, method, and project specification, including dissolved constituents; oil removal alone does not establish reuse or discharge acceptance.
  • Stable flux: Demonstrating sustained design flux over extended periods with acceptable ΔP increases.
  • Water recovery: Achievable water recovery rate without excessive fouling or scaling.
  • Chemical consumption: Actual usage rates of coagulants, flocculants, anti-scalants, and cleaning chemicals.
  • Energy consumption: Specific energy demand (kWh/m³ product water).
  • Cleaning frequency: Documented CIP frequency and effectiveness, indicating membrane resilience.

9. FAQ

Q1: How do I deal with highly stable oil-in-water emulsions? A: Test chemical demulsification and suitable physical separation together, including DAF/IGF or compatible UF. Excessive shear can create smaller droplets and stabilize emulsions, so mixing energy and sequence need validation. UF physically retains some emulsified oil; it does not guarantee chemical demulsification or removal of dissolved hydrocarbons.

Q2: What are the main challenges for Reverse Osmosis in produced water treatment? A: The primary challenges are severe fouling from residual oils, organics, and suspended solids; scaling from high concentrations of sparingly soluble salts (e.g., calcium sulfate, silica); and high osmotic pressure requiring elevated operating pressures and limiting recovery, especially in hypersaline feeds.

Q3: Can I reuse the treated produced water? A: Yes, with proper treatment, the permeate can be reused for various industrial applications such as cooling tower make-up, boiler feed water (often requiring further polishing like EDI), or non-potable process water. The level of treatment required depends on the specific reuse application and its water quality specifications.

Q4: What if I have high silica concentrations in my produced water? A: Calculate silica behavior using actual pH, temperature, metals, concentration polarization, and recovery. Compare compatible silica inhibitors, lower recovery, and tested upstream precipitation/softening. Hot-lime treatment can remove some silica by suitable precipitates but is not a universal complete-removal guarantee. Raising pH can create other metal/hardness precipitates, so validate the full chemistry and separate solids upstream.
