High-recovery RO systems: staged recovery and concentrate control
Evaluate staged recovery with feed chemistry, verified pretreatment, antiscalant limits and complete water and salt balances.
Use when
Owners want more permeate until silica, sulfate, or LSI makes recovery a chemistry problem—not a pump problem.
Process options
Recovery is staged with pretreatment discipline, antiscalant validation, and an explicit concentrate disposition path.
Assessment output
Measure sustainable recovery, cleaning demand and a permitted concentrate route at the actual feed conditions.
Inputs and conditions for an assessment
Collect feed variability, capacity, target quality, operating hours, discharge or reuse boundaries and installed equipment data. Compare examples on matched conditions and meter boundaries; assess a project using actual water data, equipment documentation and any necessary tests.

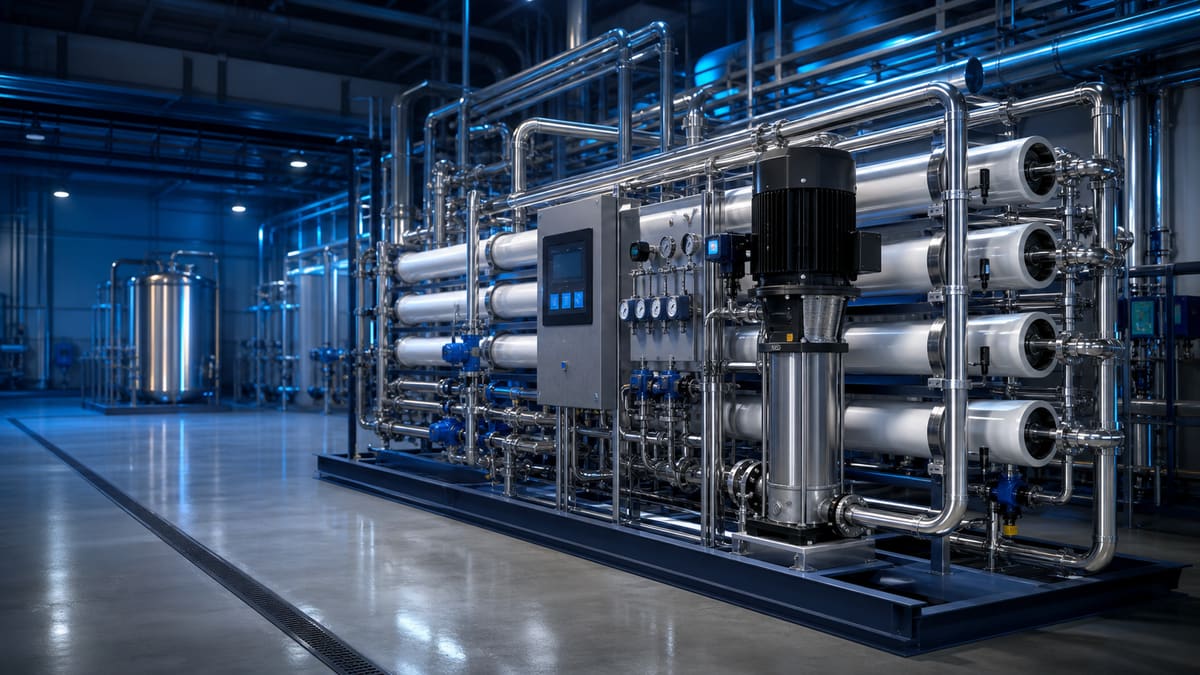

View the process illustration
1. Process context & when this scenario is the right entry point
Recoveries of 75–90% are illustrative targets for some suitable reverse osmosis (RO) feeds, not a universal ceiling or standard for seawater and every wastewater. Targets of 90-98% or a Zero Liquid Discharge (ZLD) boundary require feed-specific validation and may involve precipitation, additional membrane steps or thermal treatment; they are not guaranteed RO-only recoveries. These drivers include severe water scarcity, stringent discharge regulations (e.g., limits on total dissolved solids (TDS) or specific constituents in effluent), and the economic imperative to minimize fresh water intake and wastewater disposal costs. This scenario is the appropriate entry point when conventional RO recovery limits, primarily dictated by scaling or osmotic pressure, are insufficient to meet these operational and regulatory demands. It signifies a strategic shift from simple water purification to advanced water management and resource maximization.
2. Feed characteristics & key risks
High-recovery RO systems are inherently challenged by feedwaters that concentrate undesirable constituents. Key characteristics include high TDS, high concentrations of scaling ions (calcium, magnesium, barium, strontium, silica), high alkalinity, and potentially high organic content.
The primary risks encountered are:
- Scaling: As water is recovered as permeate, non-permeating inorganic salts become highly concentrated in the concentrate stream. This can lead to supersaturation and precipitation of sparingly soluble salts like calcium carbonate (CaCO₃), calcium sulfate (CaSO₄), barium sulfate (BaSO₄), strontium sulfate (SrSO₄), and silica (SiO₂), particularly in later RO stages where concentration factors are highest.
- Fouling: Elevated concentrations of colloids, suspended solids, organic matter, and microorganisms can lead to membrane surface fouling, increasing operating pressure and reducing flux.
- Osmotic Limits: With very high TDS feedwaters, the osmotic pressure difference across the membrane can become substantial, requiring extremely high feed pressures, which can be energy-intensive and impact membrane lifespan.
- Regulatory Drivers: Failure to manage concentrate effectively can result in non-compliance with discharge permits, leading to fines and operational shutdowns.
3. Concentrate / reject routing
The management of concentrate (also known as reject or brine) is the defining challenge of high-recovery RO. Water treatment does not make matter disappear; it merely separates it. The primary goal is to minimize the volume of the final, highly concentrated reject and ensure its environmentally compliant or economically viable disposition.
In a multi-stage high-recovery RO system (e.g., 2-stage or 3-stage concentrate-staged RO), the reject from the first stage becomes the feed to the second, and so on. At each successive stage, the permeate is extracted, and the remaining concentrate is further enriched in dissolved solids.
The routing of the ultimate, highly concentrated reject stream depends heavily on the project's ZLD mandate and economic viability:
- Further Membrane Concentration: For extremely high recoveries (e.g., >95%), the concentrate from a conventional RO system might be fed to a specialized brine concentrator RO (BCRO), vibrating membrane systems (e.g., VSEP), or forward osmosis (FO) systems. Each option has specific pressure, chemistry and solids limits; FO also requires draw-solution regeneration and a complete energy balance. None automatically handles every high-TDS or high-solids feed.
- Thermal Evaporation: If further membrane separation becomes uneconomical or technically infeasible due to extreme saturation or osmotic pressure, the concentrate can be directed to mechanical vapor recompression (MVR) evaporators or multi-effect distillers (MED). These thermal processes vaporize the water, producing condensate and a smaller concentrate stream. Volatile contaminants and droplet carryover can affect condensate quality; verify treatment and reuse specifications rather than assume high purity.
- Crystallization: To achieve true Zero Liquid Discharge, the concentrated brine from evaporators is fed to crystallizers. These units further remove water, precipitating dissolved solids into a solid crystalline cake (e.g., mixed salts, sodium chloride, calcium sulfate). Separate crystal slurry from mother liquor and manage residual liquid within the defined ZLD boundary. Classify solids and use permitted disposal; beneficial reuse requires composition, contaminant and product-acceptance evidence.
- Deep Well Injection: In certain geological formations, highly concentrated brine can be injected into deep, permeable rock layers that are isolated from potable water aquifers. This is a common disposal method for oilfield produced water but requires extensive geological surveys and regulatory approval.
- Haul-off: For smaller volumes or temporary operations, the highly concentrated brine may be trucked off-site to a permitted disposal facility. This is typically the most expensive option per unit volume.
Account for every solute in pretreatment solids, permeate, concentrate, cleaning wastes and any accumulation; RO does not reject every constituent completely. Each output needs a defined use or disposition route.
4. Reference process train options

Achieving high recovery often necessitates a sophisticated and integrated process train:
-
Pretreatment: Robust pretreatment is non-negotiable. This typically includes:
- Coagulation/Flocculation: For removal of suspended solids and colloids.
- Media Filtration: Multi-media filters (MMF) or granular activated carbon (GAC) for larger particulates and some organics.
- Ultrafiltration (UF) or Microfiltration (MF): A barrier for selected suspended solids, colloids and microorganisms; an SDI₁₅ target below 3 must be verified at actual conditions and is not guaranteed solely by installing UF/MF.
- Softening: Ion exchange (IX) softening or lime-soda softening to remove hardness (calcium, magnesium) if scaling is a primary concern. This is often employed between RO stages or as a primary pretreatment for the entire train.
- Antiscalant Dosing: Critical for inhibiting crystal growth and dispersion of precipitates, chosen specifically for the feed water chemistry and concentration factors.
- pH Adjustment: pH manipulation can be used to control the solubility of certain scales (e.g., lowering pH to prevent CaCO₃ precipitation, or using a validated alkaline precipitation/softening step with suitable reagents to remove silica or metals prior to RO; higher pH alone can increase silica solubility).
-
Multi-Stage RO (Concentrate Staging): The most common approach. The reject from the first RO stage feeds the second stage, and so on, progressively concentrating the solutes. This configuration optimizes membrane utilization and allows for varying operating conditions (e.g., higher antiscalant dose, lower flux) in the later, higher-concentration stages.
-
Inter-stage Chemistry Adjustment: Between RO stages, it may be necessary to inject additional antiscalant, adjust pH, or even perform an intermediate softening step (e.g., chemical precipitation or IX) to remove scale-forming ions that have reached critical concentrations.
-
Brine Concentrator RO (BCRO): Specialized RO membranes and system designs capable of operating at higher pressures and with higher TDS feeds than conventional RO, pushing recovery further before thermal methods are required.
-
Thermal Evaporation/Crystallization: As detailed in the concentrate routing section, these are the final steps for true ZLD, converting highly concentrated liquid brine into distilled water and solid waste.
5. Operating parameters
Precise control and monitoring of operating parameters are essential for sustainable high-recovery RO:
- SDI₁₅ (Silt Density Index): Values below 3 or <1.5 can be project targets, but adopt the chosen membrane/feed design guidance. SDI is a particulate-fouling indicator and does not verify absence of dissolved-organic or biological fouling.
- LSI (Langelier Saturation Index): Used primarily for CaCO₃ scaling. For high-recovery systems, the LSI in the concentrate should be managed aggressively through pH adjustment and antiscalant dosing, often targeting values around 0 or slightly negative at the membrane surface for CaCO₃. LSI and Stiff & Davis address CaCO₃ saturation in suitable ionic-strength ranges; Ryznar is not an all-salt predictor. Separately calculate CaSO₄, BaSO₄, SrSO₄ and SiO₂ saturation using actual concentrate composition and temperature, including polarization where relevant.
- Flux (L/(m²·h) / LMH): Design flux is typically conservative in high-recovery systems, especially in later stages. The 15-25 LMH versus 8-12 LMH comparison is illustrative, not a universal standard/final-stage range. Select flux from feed quality, element guidance and pilot data, and verify cleaning and membrane-life outcomes rather than promise them.
- DP (Differential Pressure / Stage Pressure Drop): Continuous monitoring of differential pressure across each RO stage and individual pressure vessels is critical. A gradual increase in ΔP (e.g., >10-15% over baseline) typically indicates membrane fouling, signaling the need for cleaning. Excessive ΔP can lead to membrane damage.
- Recovery Rate: Actively controlled and often adjusted based on feed water quality fluctuations and real-time scaling potential. Higher recovery means higher concentration factors, thus higher risk.
- Antiscalant Dose: Optimized based on real-time scaling potential models, often requiring higher doses or different chemistries in later RO stages.
6. Digital twin & instrumentation
Instrumentation & Sensors: A comprehensive sensor suite is deployed across the entire process train, from pretreatment to the final RO stage and concentrate management:
- Flow Meters: Permeate, feed, and concentrate flows for each RO stage.
- Pressure Transducers: Feed pressure, inter-stage pressures, and concentrate pressure for each RO stage to calculate ΔP.
- Conductivity Sensors: Feed, permeate, and concentrate conductivity for each stage to track salt rejection and recovery.
- Temperature Sensors: Water temperature for flux normalization and antiscalant effectiveness.
- pH & ORP Sensors: Support chemical dosing and redox tracking. ORP is not a selective disinfectant concentration measurement; use appropriate residual tests where oxidation control is required.
- Turbidity & SDI Analyzers: Downstream of pretreatment to verify feed water quality to the RO membranes.
- Chemical Dosing Monitors: Verify antiscalant and pH adjustment chemical injection rates.
7. Pilot-Scale vs Industrial RO
Specify industrial RO for the actual continuous production duty, with documented materials, staging, chemistry controls and any thermal integration. Confirm SCADA interfaces and control functions in the equipment scope rather than assume a standard series has them. Use pilot-scale RO to test actual feed, membrane selection, antiscalant limits, flux and recovery; pilot duration, deployment and scale-up must match the variability and risks of the site.
8. Common engineering mistakes & pilot KPIs
Common Engineering Mistakes:
- Underestimating Concentrate Chemistry: Failing to account for the extreme concentration of specific ions in later stages, leading to unexpected scaling or solubility issues.
- Inadequate Pretreatment: Cutting corners on pretreatment, especially UF/MF or advanced softening, which can increase premature fouling and scaling risk; select the required barriers from feed and design evidence.
- Antiscalant Misapplication: Using a generic antiscalant or an insufficient dose, or failing to validate its effectiveness with the highly concentrated brine.
- Ignoring Osmotic Pressure: Designing for high recovery without considering the resulting high osmotic pressure, leading to excessive energy consumption and impractical operating pressures.
- Lack of Mass Balance Validation: Not rigorously tracking and reconciling the mass of solutes through each stage, which can lead to unaccounted-for accumulation or discharge issues.
- Insufficient Piloting: Directly scaling up from lab data or generic designs without on-site piloting, missing critical site-specific feedwater characteristics.
Key Performance Indicators (KPIs) for Piloting:
- Permeate Recovery (%): Achieved vs. target, and its stability over time.
- Permeate Quality (Conductivity/TDS): Ensuring it meets downstream requirements.
- Salt Rejection (%): Overall and per key ion.
- Normalized Flux Decline (%/day): Rate at which flux decreases, indicating fouling potential.
- Differential Pressure Increase (psi/day): Rate at which ΔP increases, another indicator of fouling.
- Antiscalant Efficacy: Measured by how effectively scaling is inhibited at target recovery.
- Specific Energy Consumption (kWh/m³ permeate): Total energy input per unit of clean water produced.
- Membrane Cleaning Frequency: How often CIP is required and its effectiveness.
- Concentrate Volume Reduction (%): How much the initial feed volume is reduced to the final concentrate volume.
- Concentrate Treatability/Disposability: Confirming the final concentrate can be handled by the chosen downstream method.
9. FAQ
Q1: How does high-recovery RO affect membrane lifespan? A1: High-recovery RO inherently places greater stress on membranes due to higher solute concentrations and often higher operating pressures. Without meticulous pretreatment, precise chemical dosing, and stringent operational control, membrane lifespan can be significantly reduced due to accelerated fouling and scaling. However, with proper design and management, membrane life can still meet industry expectations.
Q2: Is ZLD always the ultimate goal for high-recovery systems? A2: Not necessarily. While high-recovery RO is a step towards ZLD, the ultimate goal depends on site-specific regulations, economic factors, and water scarcity. The objective might be to achieve a "minimal liquid discharge" (MLD) where concentrate volume is drastically reduced for more economical off-site disposal, or to reach specific discharge limits, rather than absolute zero.
Q3: What are the energy implications of high-recovery RO? A3: Pushing recovery higher often means operating at higher feed pressures, especially in later RO stages due to increased osmotic pressure. Measure specific energy consumption (kWh/m³ of permeate) for the complete train: pressure, recovered volume, recycle and pretreatment affect the result. Energy recovery devices (ERDs) can recover concentrate pressure where sufficient flow and pressure justify them; they are not an automatic requirement or saving at every high-recovery duty.
Q4: How important is temperature control in high-recovery RO? A4: Temperature significantly impacts membrane flux, water viscosity, and solubility of scaling salts. Fluctuations can lead to variable performance and increased scaling risk. For consistent high-recovery operation, maintaining a stable feed temperature or accounting for its variations in control algorithms (e.g., flux normalization) is crucial.
